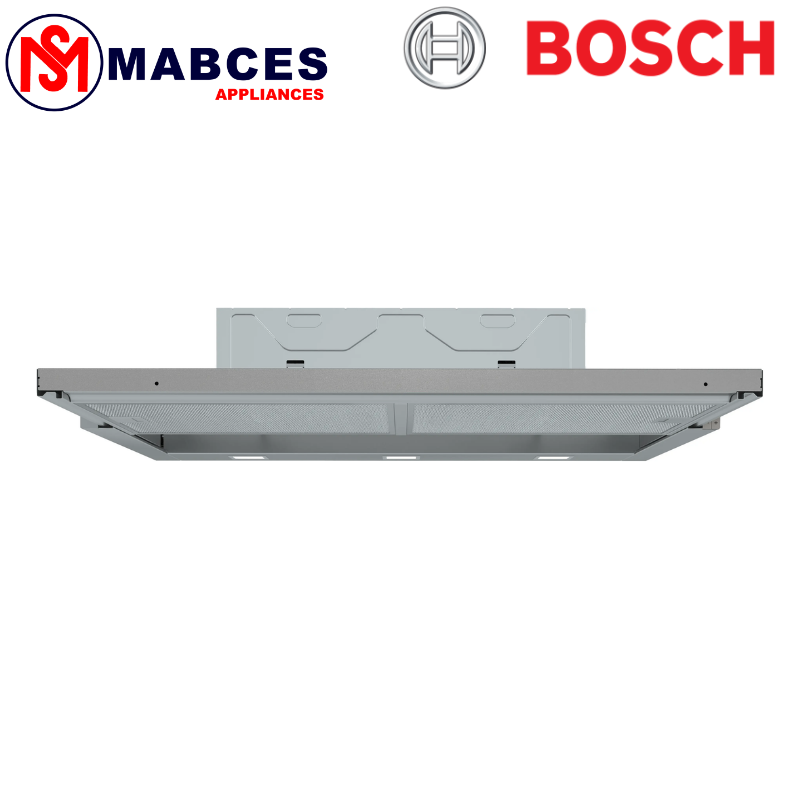

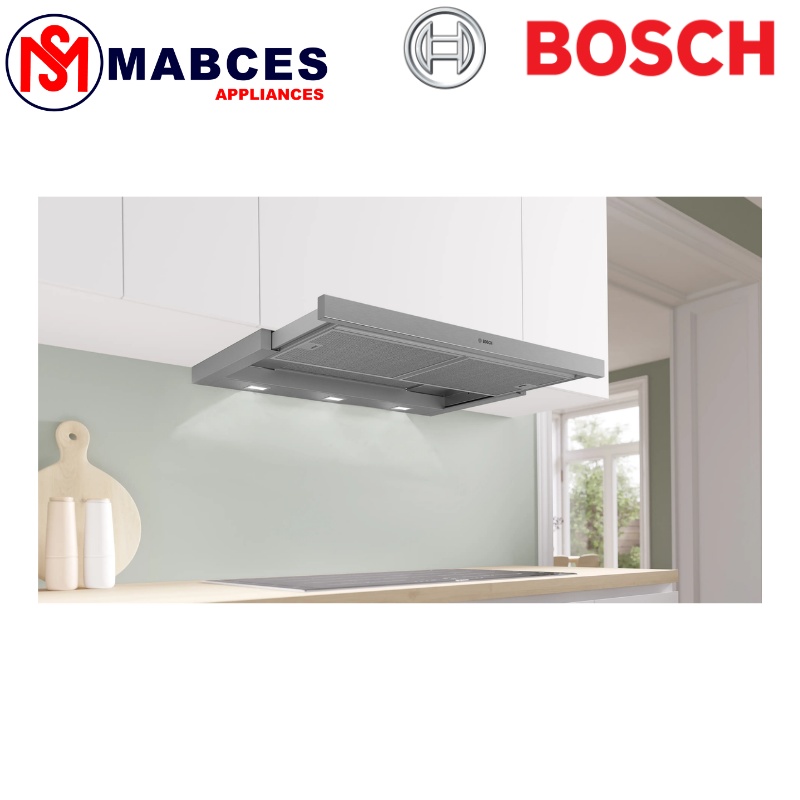

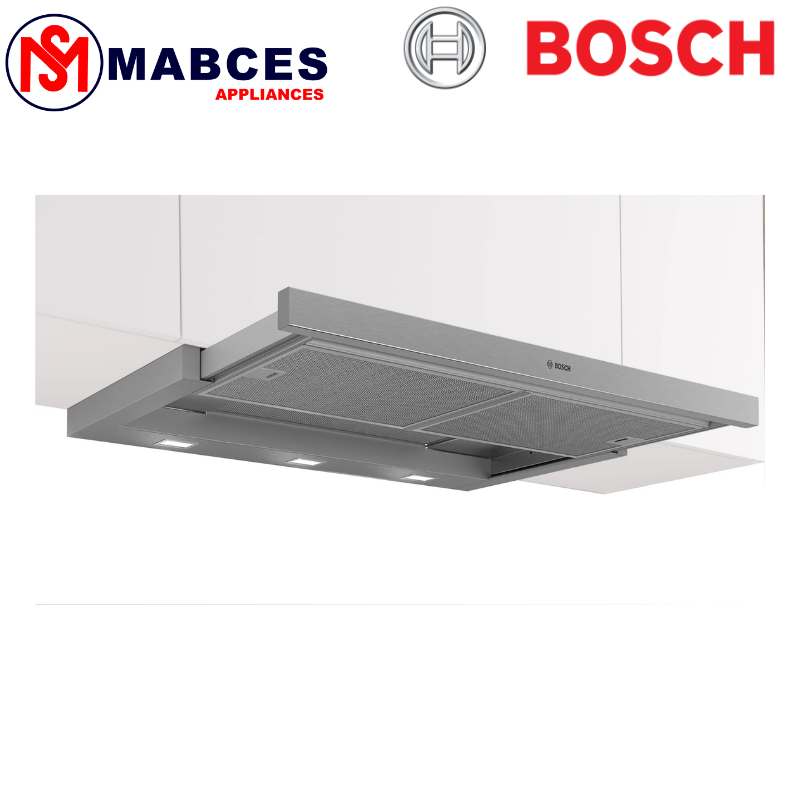

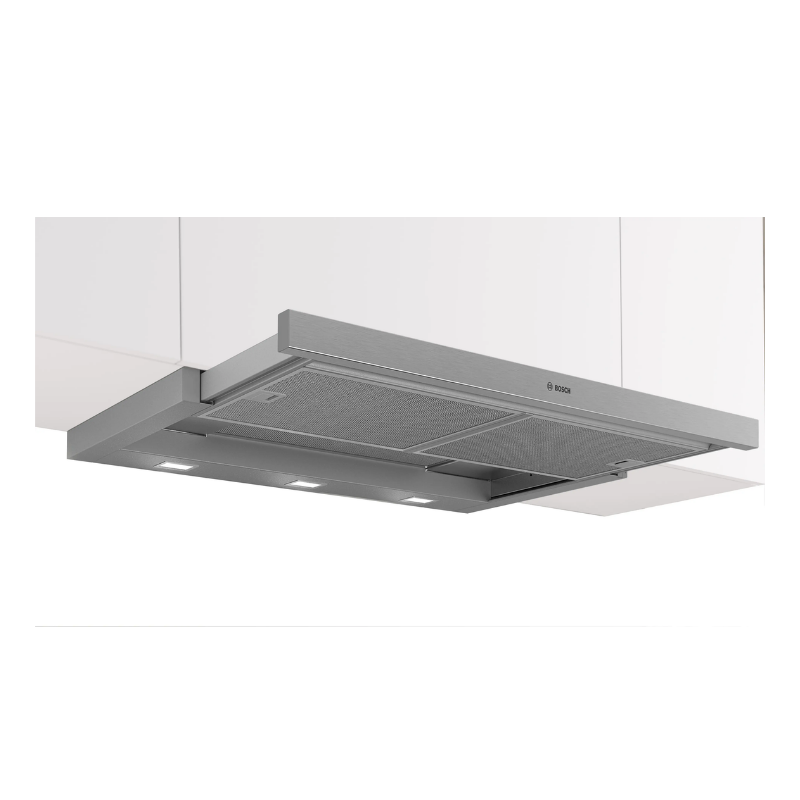

Bosch DFL094A51 Serie 4 Flachschirmhaube 90 cm Silber, metallisch

• 90 cm
• 90 cm flat screen hood, gray metallic

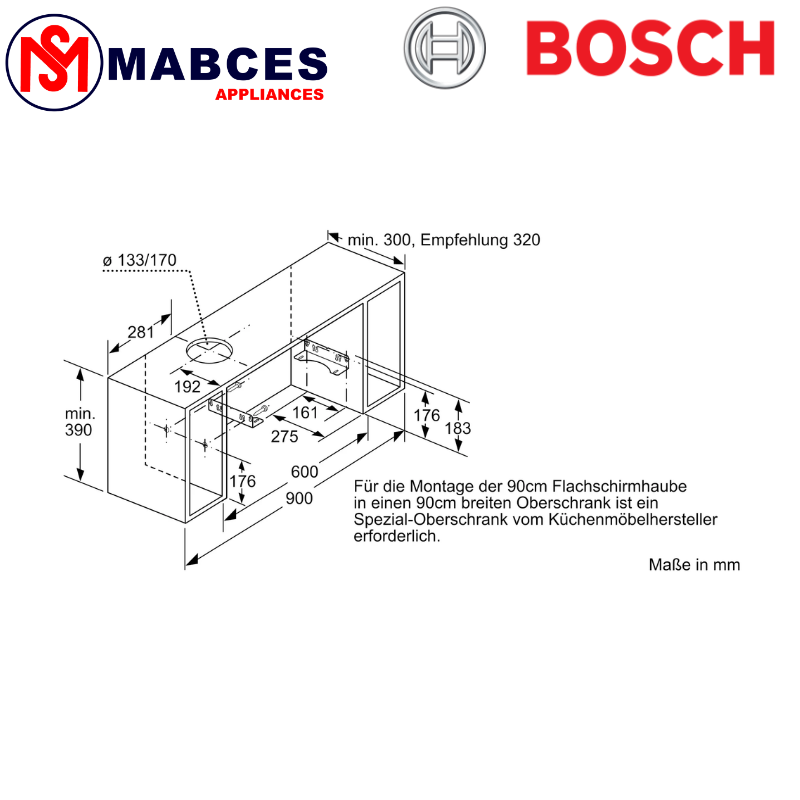

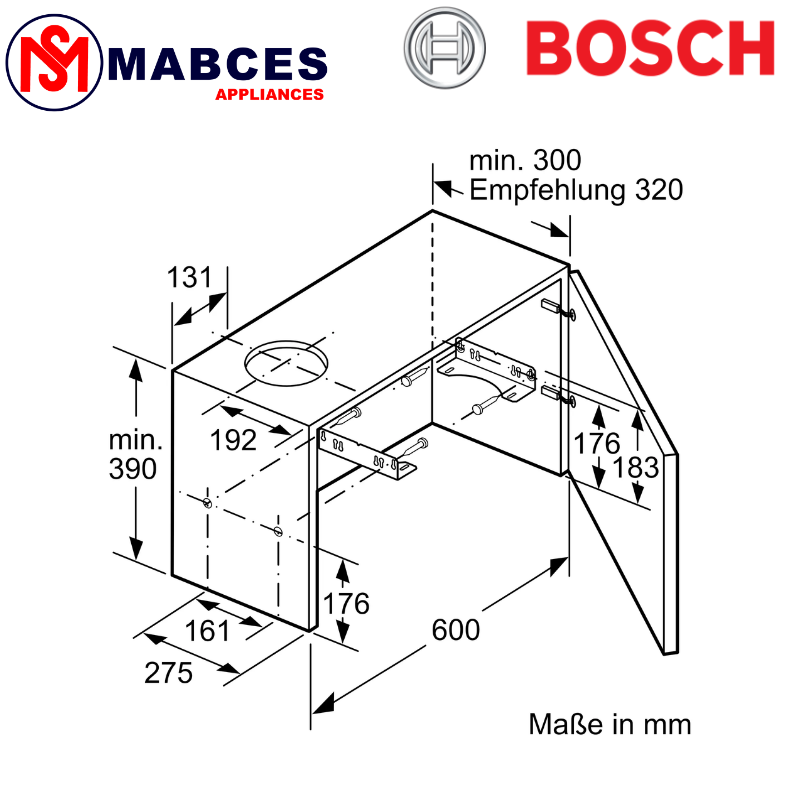

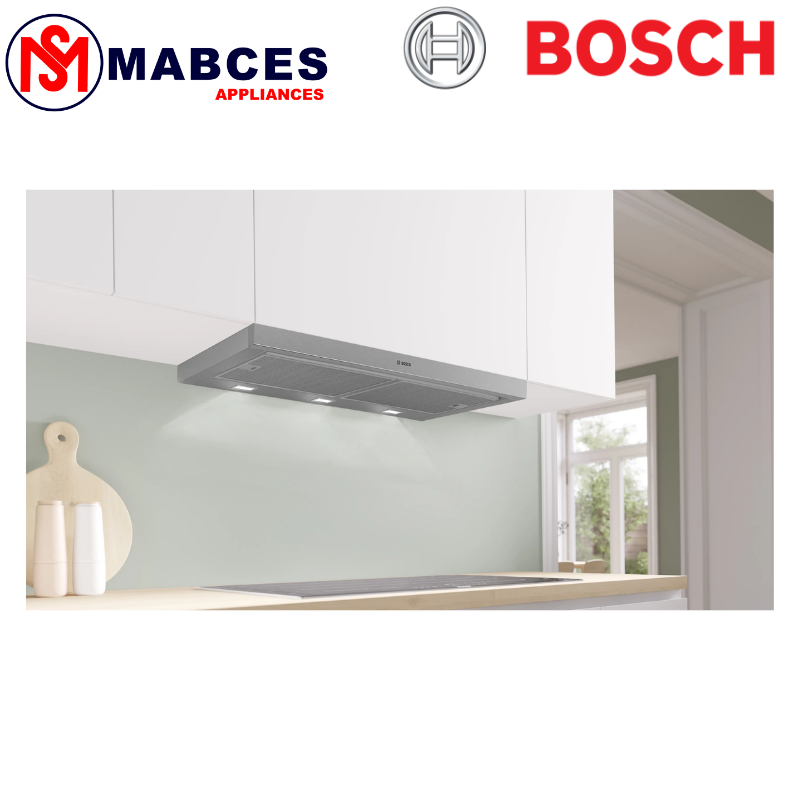

• For installation in a 60 cm or 90 cm wide special wall cabinet

Comfort

• Short stroke buttons with LED display
• Electronic control via short stroke buttons with LED display
• Electronic Control
• Short stroke buttons (3 power levels and
• 1 intensive level) with LED display

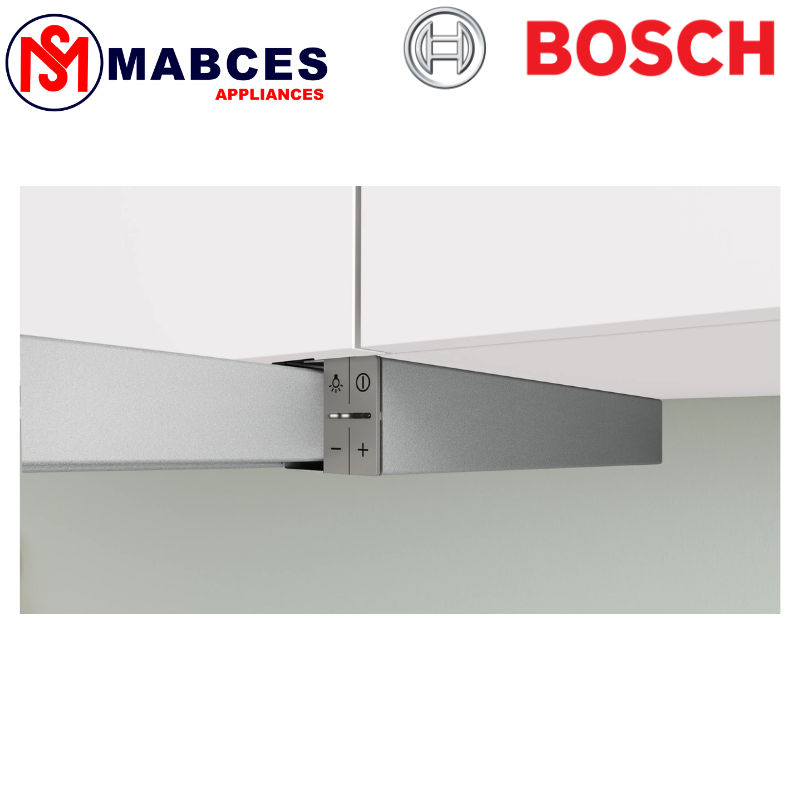

• Electronic control on the side
• Short stroke buttons

< li>3 power levels and

• 1 intensive level
• Intensive levels with automatic reset
• Fan run-on 10 minutes

Equipment

• Even, bright lighting with 3 x 1.5 W LED module
• Color temperature: 3500 K
• Illuminance: 355 lux

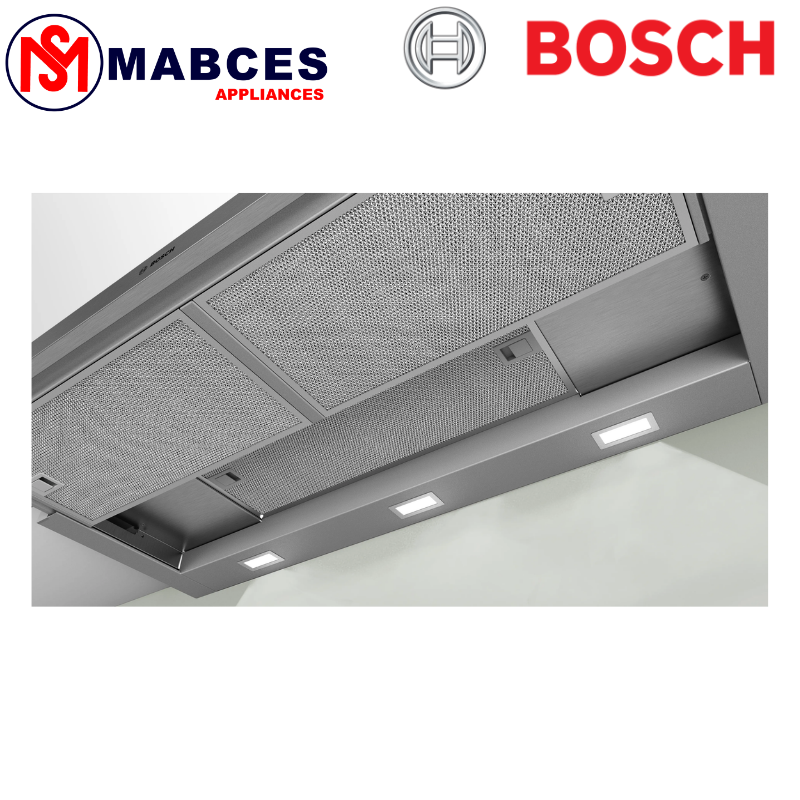

• Cassette with aluminum frame

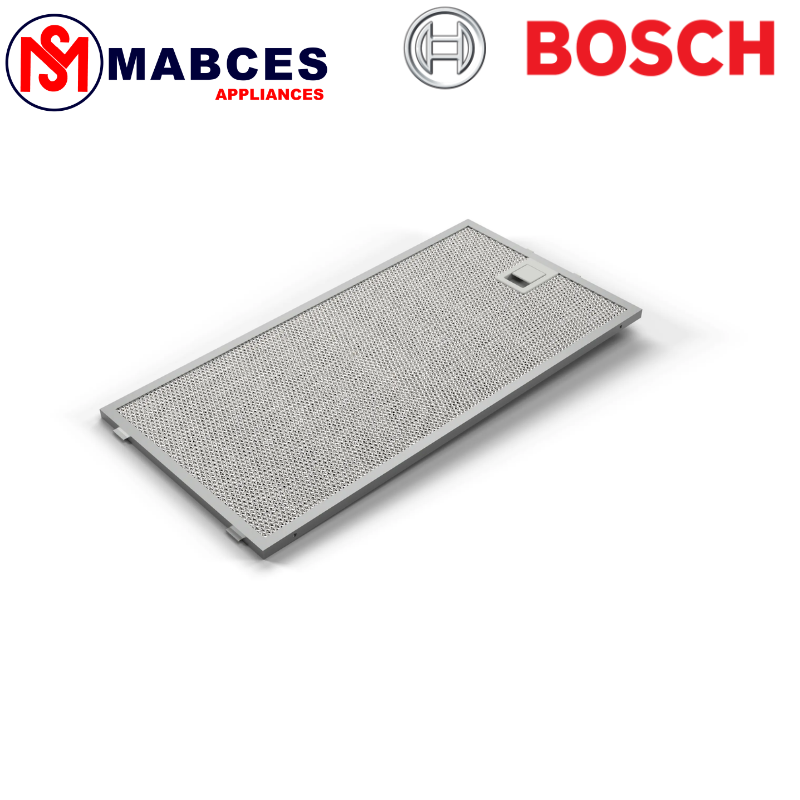

• Metal grease filter, Dishwasher-safe

Operating mode and performance

• Exhaust air performance according to EN 61591: max. 412 m³/h li>
• Fan performance according to EN 61591 for exhaust air operation:
• Max. Normal level: 266m³/h
• Intensive level: 412 m³/h
• Recirculating air output:
• max. Normal operation216m³/h
• Intensive level239 m³/h
• Noise levels according to EN 60704-2-13 for exhaust air operation:
• Max. Normal level: 63dB(A) right 1 pW
• Intensive level: 70 dB(A) right 1 pW
• Noise levels in recirculation mode:
• max. Normal level: 67dB(A) re 1 pW
• Intensive level: 69 dB(A) re 1 pW
• Choice of exhaust air or recirculation mode
• Recirculation mode becomes a standard Recirculation set (special accessory) required
• 1 single-flow. Eco Silence Drive – the powerful and energy-saving motor
• Eco Silence Drive – the powerful and energy-saving motor

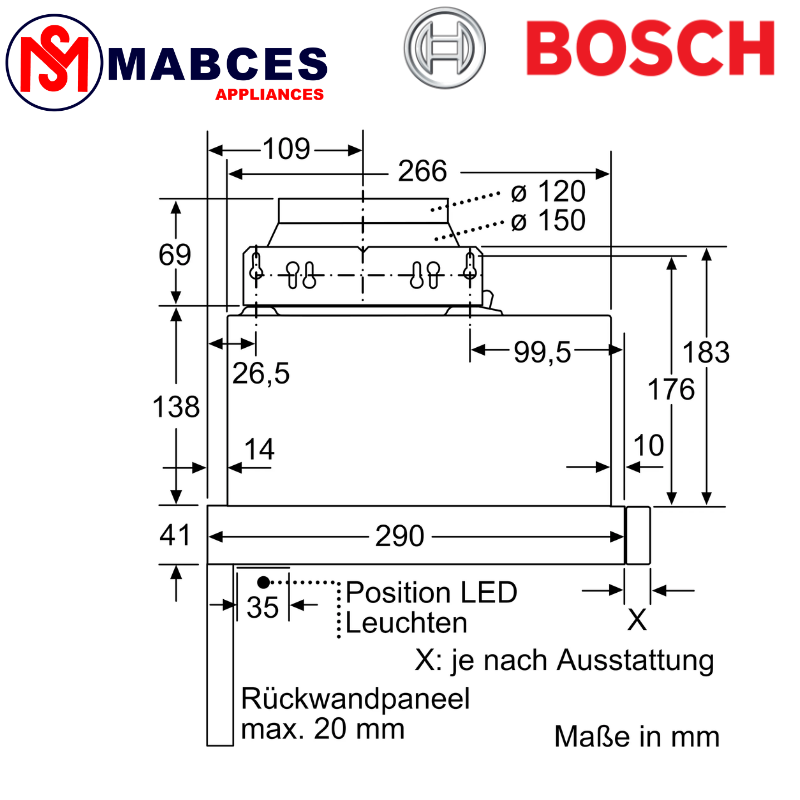

Planning and installation information

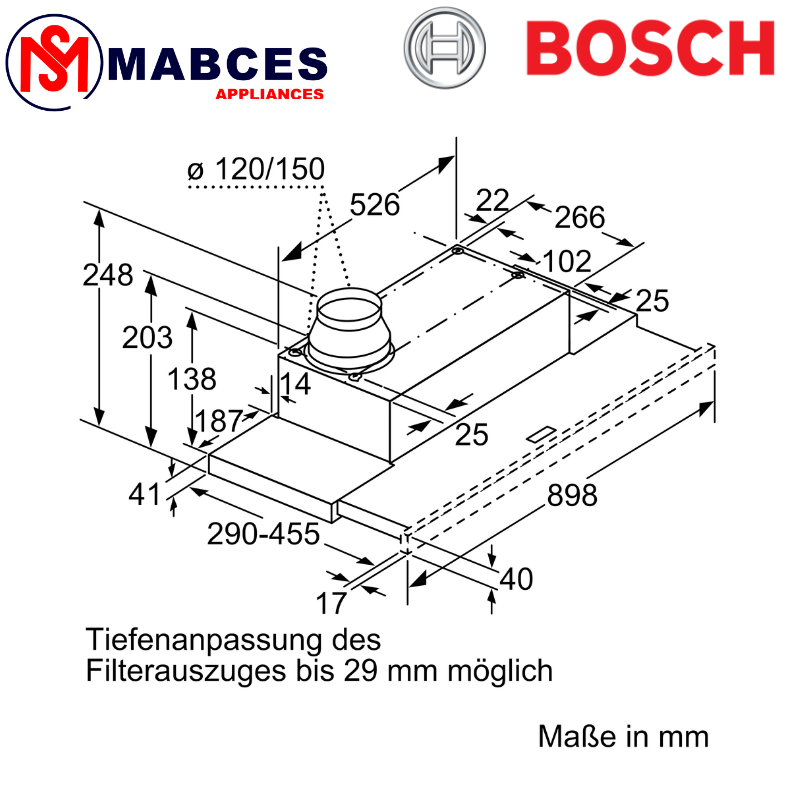

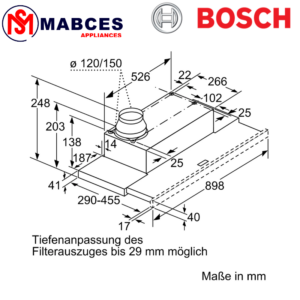

• Device dimensions (HxWxD): 203 x 898 x 290 mm

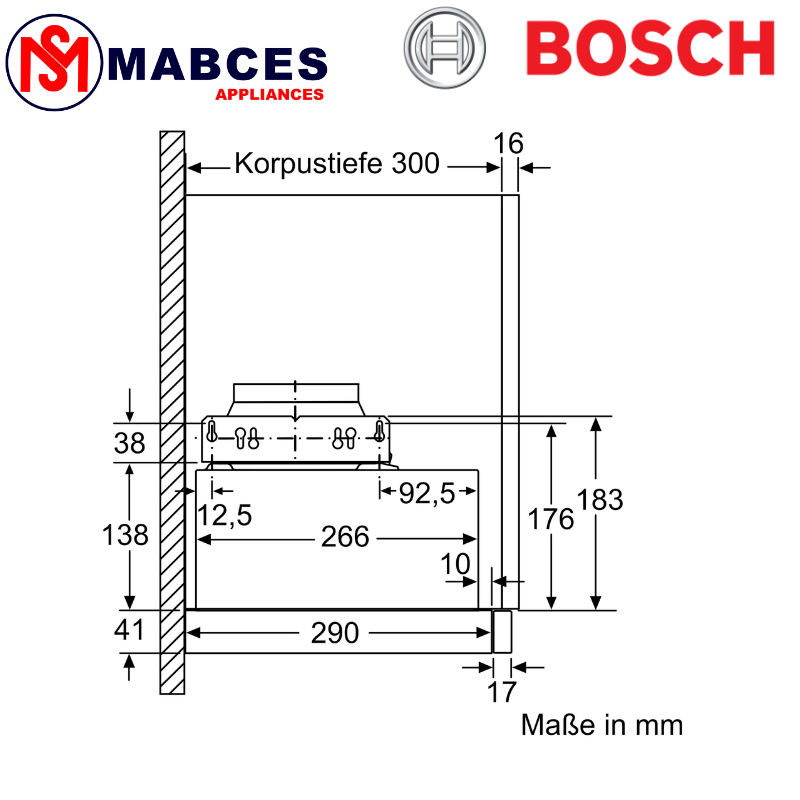

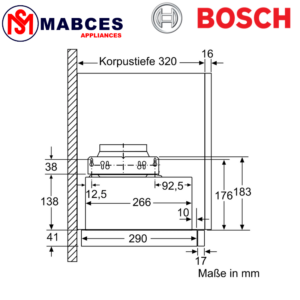

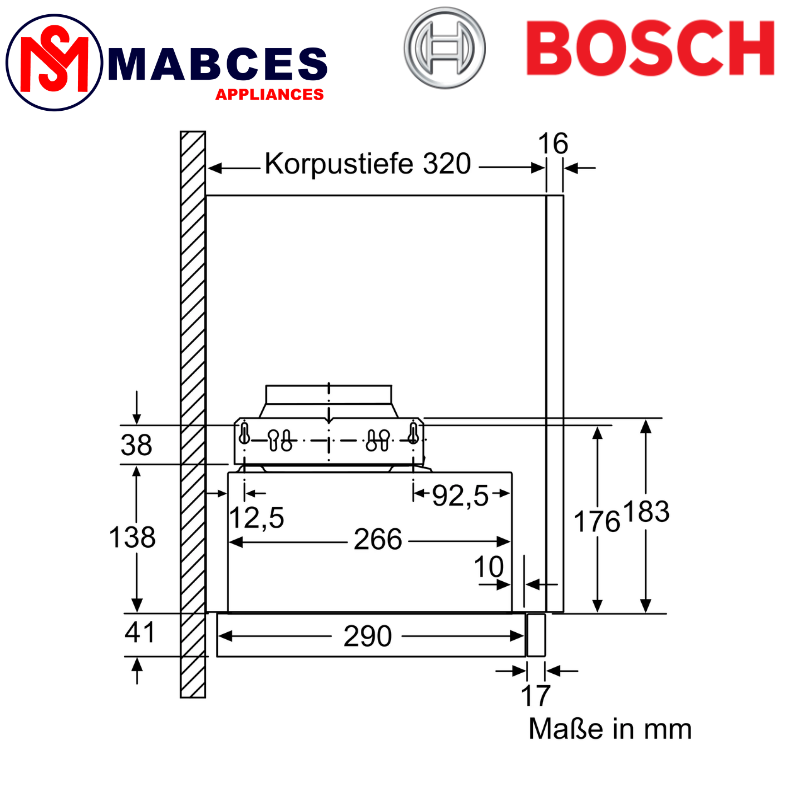

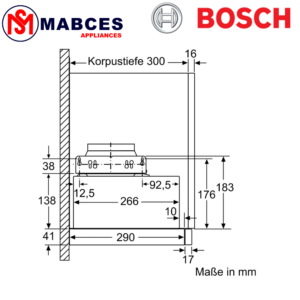

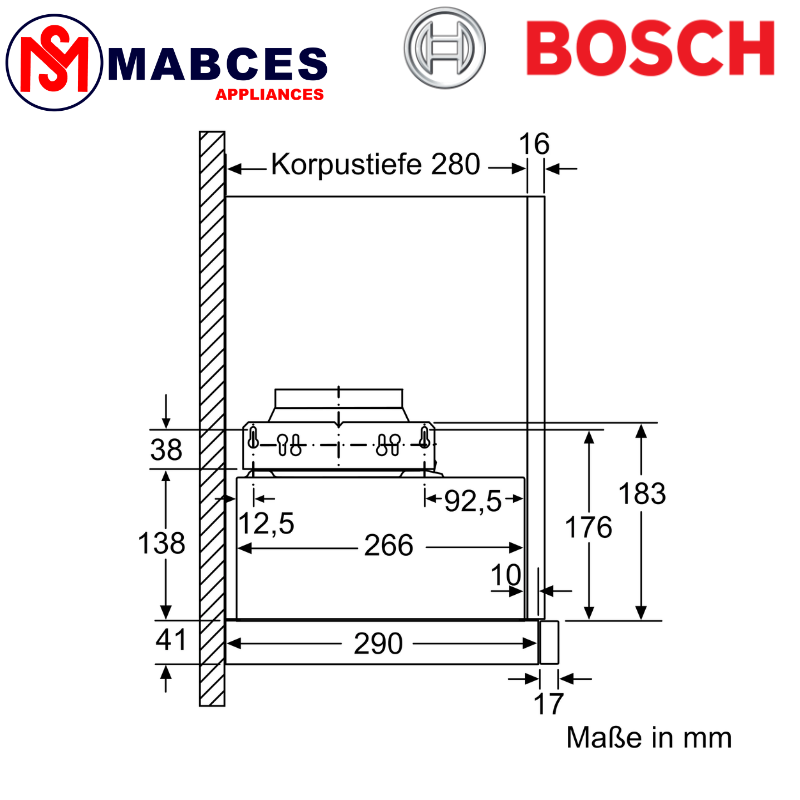

• Installation dimensions (HxWxD): 162 x 526 x 290 mm
• Exhaust air socket Ø 150 mm (Ø 120 mm included)
• Length of connection cable: 1.75 m with plug

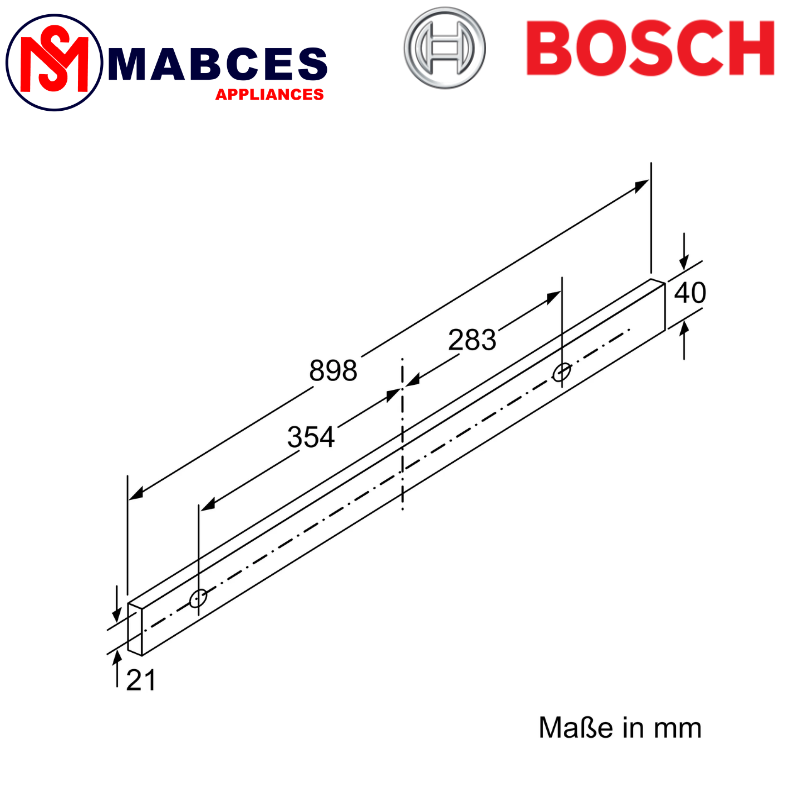

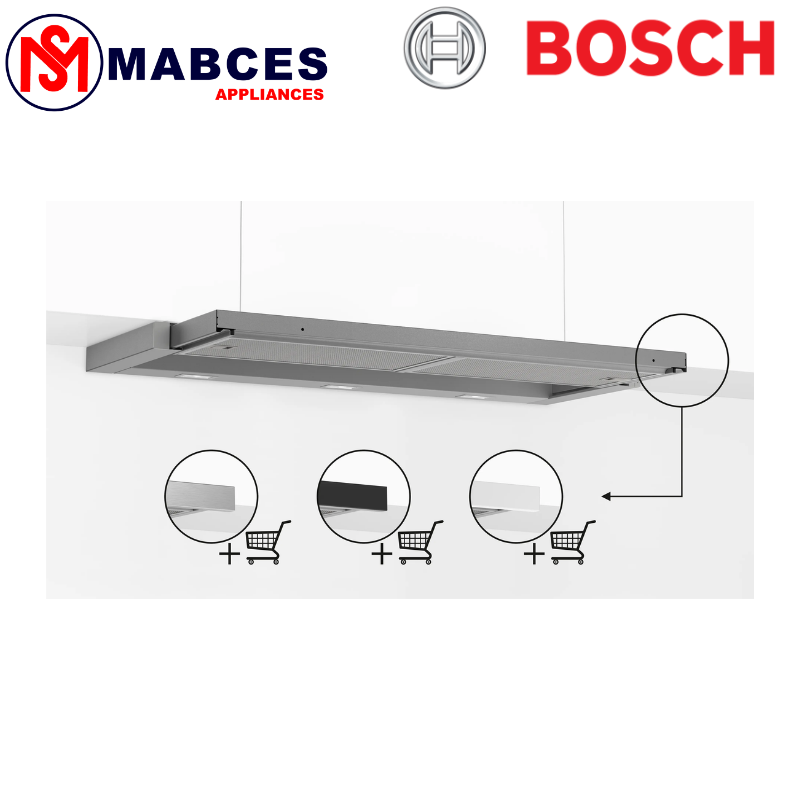

• Handle bar available as an optional accessory

Environment and safety

• Energy efficiency class: A (on an energy efficiency class scale from A+++ to D)
• Average energy consumption: 22.2 kWh/year*
• Fan efficiency class: B*
• Lighting efficiency class: A*
• Grease filter efficiency class: C*
• Total connected load: 76 W
