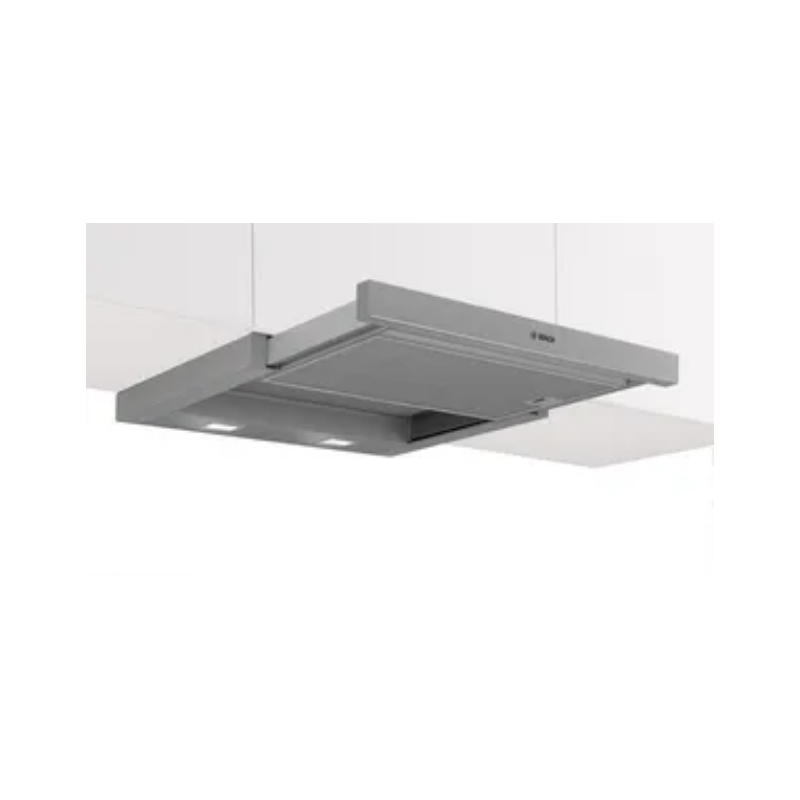

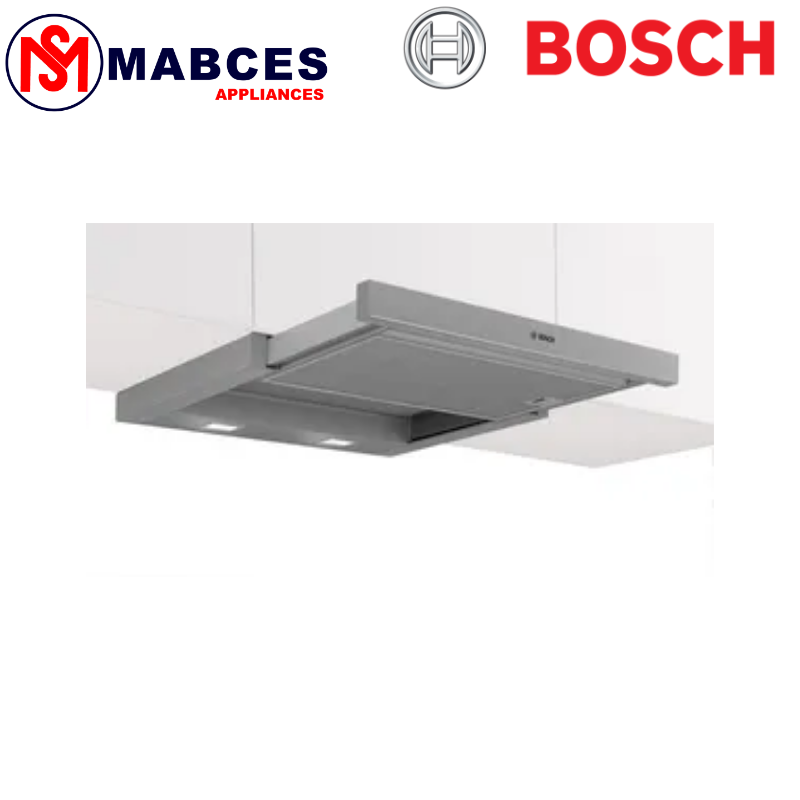

Bosch DFM064A52 Series 4 60CM Slimline Hood

• 60 cm
• 60 cm flat screen hood, gray metallic
• For installation in a 60 cm wide special wall cabinet

Comfort

• Short stroke buttons (3 power levels and
• 1 intensive level) with LED display
• Electronic control on the side li>
• Intensive levels with automatic reset
• Fan run-on 10 minutes

Equipment

• Even, bright lighting with 2 x 1, 5 W LED module
• Color temperature: 3500 K
• Illuminance: 294 lux
• Cassette with aluminum frame
• Metal grease filter, Dishwasher safe

Operating mode and performance

• Choice of exhaust air or recirculation mode
• A standard recirculation set (special accessory) is required for recirculation mode
• Fan performance according to EN 61591 in exhaust mode:
• Max. Normal level: 268m³/h
• Intensive level: 400 m³/h
• Noise levels according to EN 60704-2-13 for exhaust air operation:
• Max. Normal level: 62dB(A) right 1 pW
• Intensive level: 69 dB(A) right 1 pW
• Noise min./max. Normal level: 49/62 dB
• Recirculating air performance:
• max. Normal operation 216m³/h
• Intensive level 239 m³/h
• Noise levels in recirculation mode:
• max. Normal level: 67dB(A) re 1 pW
• Intense level: 69 dB(A) re 1 pW
• 1 single-flow. Eco Silence Drive – the powerful and energy-saving motor

Planning and installation information

• • Device dimensions (HxWxD): 203 x 598 x 290 mm

  < li>Installation dimensions (HxWxD): 162 x 526 x 290 mm

  • Exhaust air connection Ø 150 mm (Ø 120 mm included)
  • Length of connection cable: 1.75 m with plug

  ul>

Environment and safety

• • Energy efficiency class: A (on an energy efficiency class scale from A+++ to D)
  • Average energy consumption: 21 kWh/year*
  • Fan efficiency class: B*
  • Lighting efficiency class: A*
  • Grease filter efficiency class: C*
  • Total connected load: 74 W
